價格：電議
所在地：陜西 西安市
型號：MT8056T
更新時間：2011-06-29
瀏覽次數：1572
公司地址： 西安市長安北路新文巷98好1-401室
郭媛媛(女士) 電子商務
|
◆Specifications |
|
|
Display |
5.6" |
|
Brightness |
500 cd/m2 |
|
Color |
65536 color |
|
Contrast Ratio |
250:1 |
|
Resolution(WxH) |
320x234 |
|
Back Light |
CCFLx1 |
|
Touch Panel |
4 wires resistive type |
|
Touch Accuracy |
1.5mm |
|
Surface Hardness |
4H |
|
Serial Interface |
COM1(RS232/RS485 2w/4w) COM2(RS232) COM3(RS232/RS485 2w) |
|
Processor |
32 bit RISC CPU 200 MHz |
|
Ethernet Port |
10/100 Base-T |
|
USB Interface |
USB 2.0 x 2 |
|
Sound Output |
Line Out x1 |
|
Flash Memory |
32MB |
|
DRAM |
64MB |
|
Recipe Memory |
YES |
|
CF Card Interface |
YES |
|
RTC |
YES |
|
System Diagnostic |
Power failure detection |
|
Input Power |
24 VDC /- 5% |
|
Power Consumption |
370mA@24VDC |
|

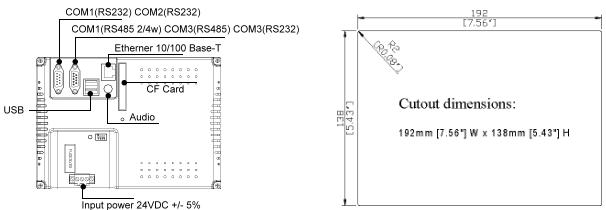

Panel Cutout (WxH) |
192x138mm |
|
Weight |
Approx 0.85kg |
| ◆General Specification | |
|
CE |
Complies with EN50081-2 and EN50082-2 standards |
|
FCC |
Complies with FCC Class A |
|
Voltage Resistance |
500 VAC (1 min) |
|
Isolation Resistance |
Exceed 50MΩ at 500 VDC |
| Vibration Endurance | 10 to 25 Hz (X,Y,Z direction 2G 30minutes) |
| Protection Structure | IP65 front panel (O ring seal) |
| Storage Temperature | -20~60°C |
| Operating Temperature | 0~45°C |
| Operation Humidity | 10-90% RH (non-condense) |
| Enclosure | Plastic |
|
|
|
|
開孔尺寸 |
|
